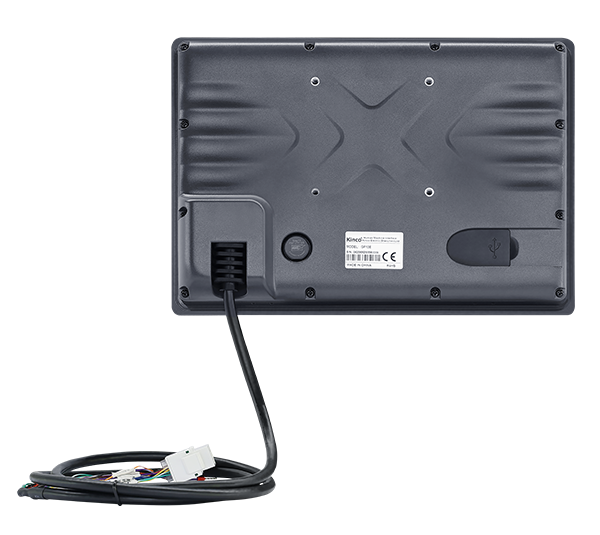

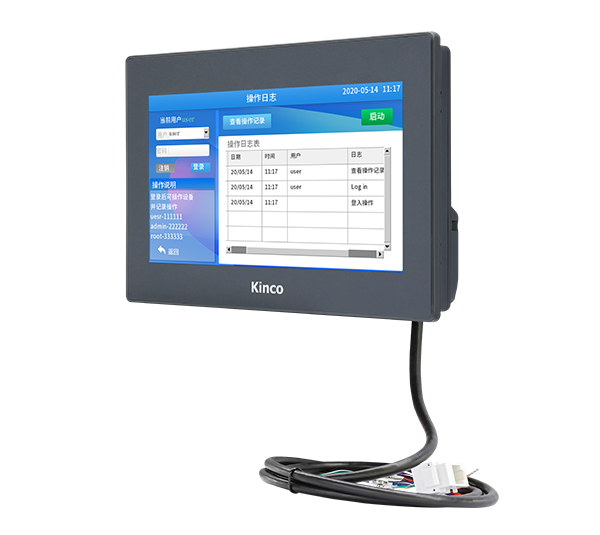

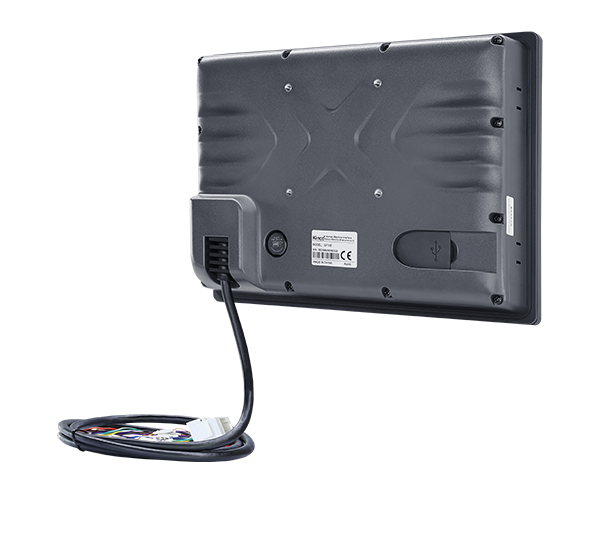

    G100E-LRF

    The entire machine meets IP65 certification, and is earthquake resistant and waterproof

    Three download methods, efficient and convenient

    Built in IoT function, remote service support


    SPECIFICATION
    Performance specifications
    Display size

    TFT

    Display area

    222.72£¨W£©x 125.28£¨H£©

    Resolution

    1024*600 pixel

    Display color

    16.2M

    Contrast ratio

    500£º1

    Backlight

    LED

    Brightness

    300cd/m?

    Backlight life

    £¾30000 hours

    Touch panel

    4 line precision resistance network£¨surface hardness 4H£©

    CPU

    ARM RISC 32Bit 792MHz

    Memory

    128MB Flash Memory+128MB Memory

    RTC

    Built-in

    Extensible memory

    1 USB Host

    Print port

    USB Host/serial port

    Ethernet

    LAN0:10/100 Mbps

    Program download

    Ethernet port/USB Slave/U disk

    Com port

    COM0:RS232/RS485£»COM2:RS232

    Electrical specifications
    Input power supply

    DC10V¡«DC28V

    Rated power

    6W@DC24V

    Allowable loss of power

    £¼3ms

    Insulation resistance

    Over 50M¦¸@500V DC

    Pressure resisitance test

    500 VAC 1 minute

    Structure specifications
    Shell material

    Engineering plastic

    Overall dimension(mm)

    271*191*35.5mm

    Cut-out dimension(mm)

    260*180mm

    Weight(kg)

    0.9KG

    Environmental specifications
    Working temperature

    0~50¡æ

    Working Humidity

    10¡«90£¥RH£¨Non-condensing£©

    Storage temperature

    -20~60¡æ

    Storage humidity

    10¡«90£¥RH£¨Non-condensing£©

    Seismic resistance

    10¡«500Hz,30m/s?,X,Y,Z direction/hour

    Cooling mode

    Natural air cooling

    Product certification
    Panel protection grade

    IP65 certification(4208-93)

    CE authentication

    EN61000-6-4:2019£¬EN61000-6-2:2019

    Software
    Configuration software

    Kinco DTools V4.1 and above version

    Data download
