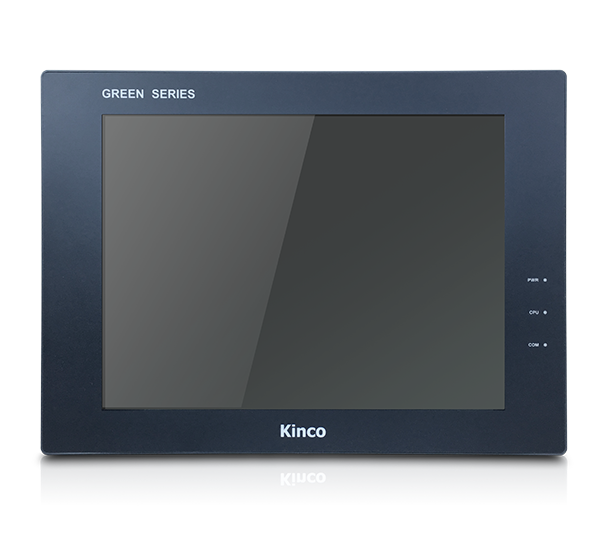

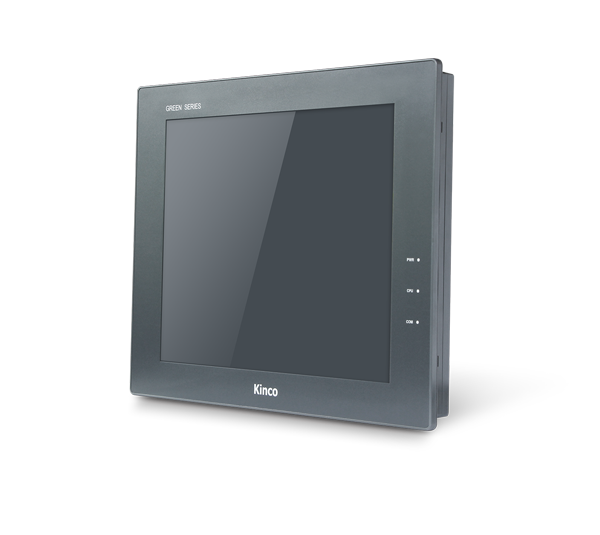

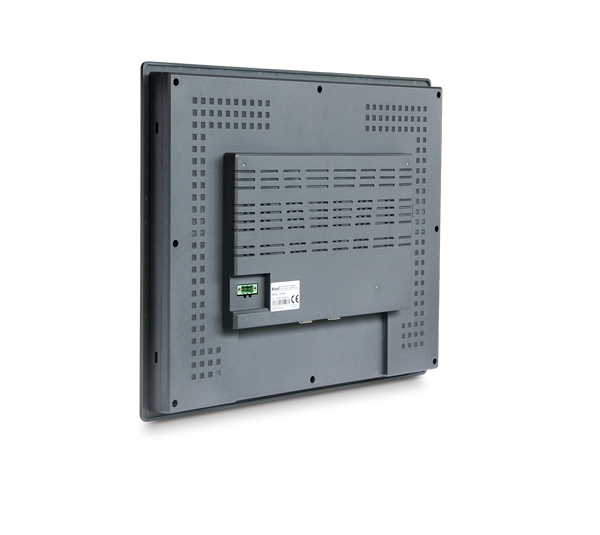

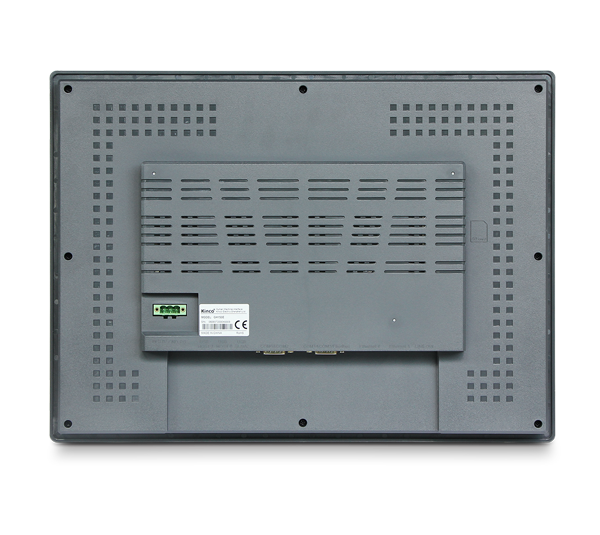

    GH150E
    Kinco HMI GREEN Series

    High reliable for applications.

    Three-proof spraying, multiple isolation.

    Up to 4 serial ports and SD card extensions.

    Industrial size ratio 4:3, display area 20% larger than widescreen.

    SPECIFICATION
    Performance Specification
    Display size

    15" TFT

    Display area

    304.13(W)¡Á228.10(H)

    Resolution

    1024¡Á768 px

    Display color

    65536 color

    Visual angle

    80/80/80/80(L/R/U/D)

    Contrast

    800:1

    Backlight

    LED

    Luminance

    420cd/m?

    LCD life

    50000 hours

    Touch panel

    4-wire precision resistance network (surface hardness 4H)

    CPU

    ARM RISC 32Bit 800MHz

    Memory

    256MB Flash Memory + 128MB Memory

    RTC

    Built-in RTC

    External storage

    1 USB Host + 1 SD Card

    Printer port

    USB Host/Serial port

    Ethernet

    LAN0:10/100 Mbps

    Program download

    USB Slave£¨Micro USB£©/U Disk/Ethernet

    Communication

    COM0:RS232/RS485/RS422; COM1:RS232/RS485/RS422; COM2:RS232; COM3:RS485

    Serial port isolated

    Built-in

    Electrical Specification
    Input range

    DC10.8V~DC28V, inbuilt isolated power supply

    Power

    16W@DC24V

    Allowable loss of power

    <3ms

    Insulation resistance

    Greater than 50M¦¸@ 500VDC

    Hi-pot test

    500VAC 1 minute

    Structure specification
    Shell material

    Engineering plastics

    Shape size

    398¡Á298¡Á47 (mm)

    Cutout size

    383¡Á283 (mm)

    Weight

    3Kg

    Environmental Specification
    Working temperature

    -10~55¡æ

    Working humidity

    10~90%RH (non-condensing)

    Storage temperature

    -20~60¡æ

    Storage humidity

    10~90%RH (non-condensing)

    Sine vibration test

    10~500Hz, 30m/s?, X,Y,Z direction/hour

    Cooling mode

    Natural air cooling

    Product Certification
    Panel protection grade

    Conforming to IP65 certification (4208-93)

    CE certification

    CE: EN61000-6-4:2007+A1:2011£¬EN61000-6-2:2005

    Software
    Configuration software

    Kinco DTools V4.1 and above version


    Notes: GH150E is a replacement model for MT4720TE.

    The old version of the project can be opened directly by DTools software and downloaded to the new HMI.
