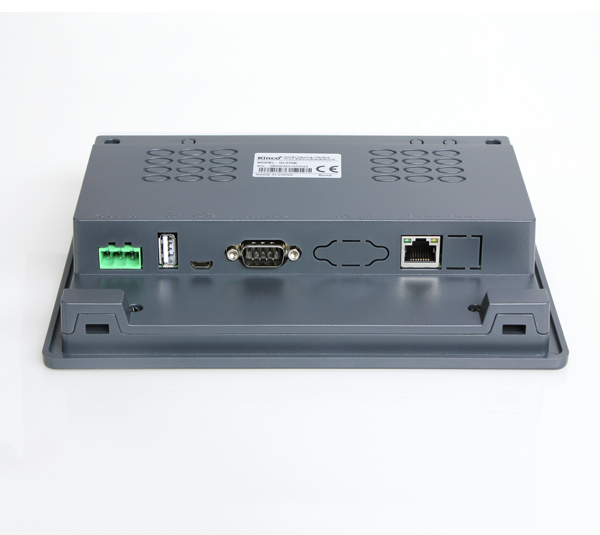

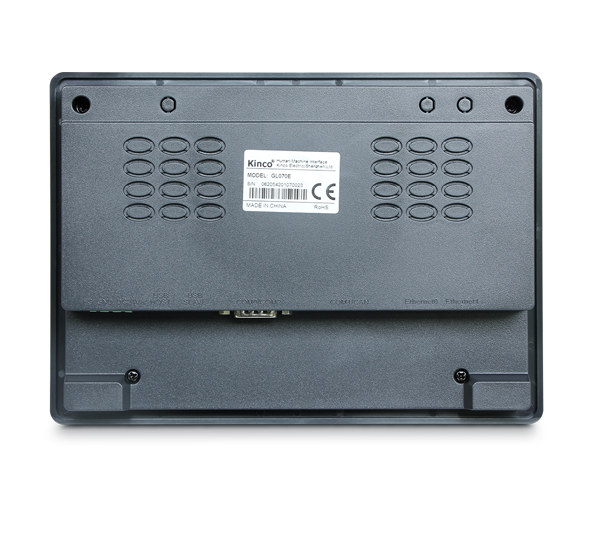

    GL070E
    Kinco HMI GREEN Series

    Display£º7¡åTFT

    Resolution£º800*480 pixels

    CPU: ARM RISC 32Bit 800MHz

    GL070E
    Performance Specification
    Display size

    7" TFT

    Display area

    154.08(W)¡Á85.92(H)

    Resolution

    800¡Á480 px

    Display color

    16.77M true color

    Visual angle

    70/70/60/70(L/R/U/D)

    Contrast

    500:1

    Backlight

    LED

    Luminance

    450cd/m?

    LCD life

    More than 30000 hours

    Touch panel

    4-wire precision resistance network (surface hardness 4H)

    CPU

    ARM RISC 32Bit 800 MHz

    Memory

    256MB Flash Memory+128MB Memory

    RTC

    Built-in RTC

    External storage

    1USB Host

    Printer port

    USB Host/Serial port

    Ethernet

    10/100M adaptable Ethernet interface

    Bus interface

    None

    Program download

    USB Slave(Micro USB)/U Disk/Ethernet

    Communication

    COM0: RS232/RS485/RS422.COM2: RS232.

    Electrical Specification
    Input range

    DC12V~DC28V,inbuilt isolated power supply

    Power

    3.6W@DC24V

    Allowable loss of power

    <3ms

    Insulation resistance

    Greater than 50M¦¸@ 500V DC

    Hi-pot test

    500V AC 1 minute

    Structure specification
    Shell material

    Engineering plastics

    Shape size

    204¡Á150¡Á34 (mm)

    Cutout size

    192¡Á138 (mm)

    Weight

    0.5Kg

    Environmental Specification
    Working temperature

    0~50¡æ

    Working humidity

    10~90%RH (non-condensing)

    Storage temperature

    -20~60¡æ

    Storage humidity

    10~90%RH (non-condensing)

    Sine vibration test

    10~500Hz, 30m/s?, X,Y,Z direction/hour

    Cooling mode

    Natural air cooling

    Product Certification
    Panel protection grade

    Conforming to IP65 certification (4208-93)

    CE certification

    CE: EN61000-6-4:2007+A1:2011£¬EN61000-6-2:2005

    Software
    Configuration software

    Kinco DTools V4.1 and above version


    Notes: GL070E is a replacement model for MT4434TE.

    The old version of the project can be opened directly by DTools software and downloaded to the new HMI.
