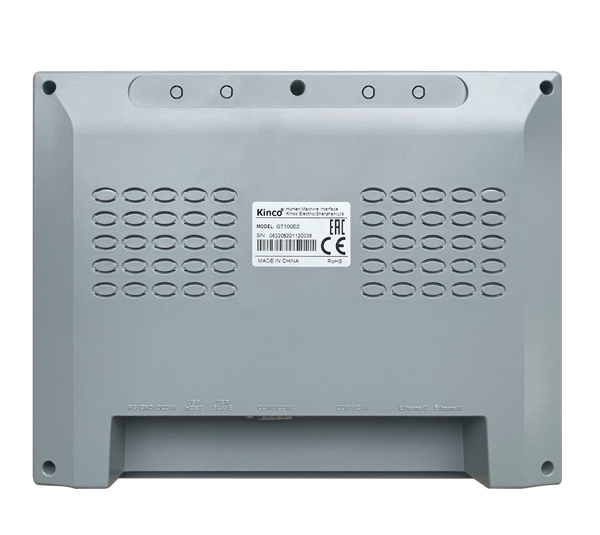

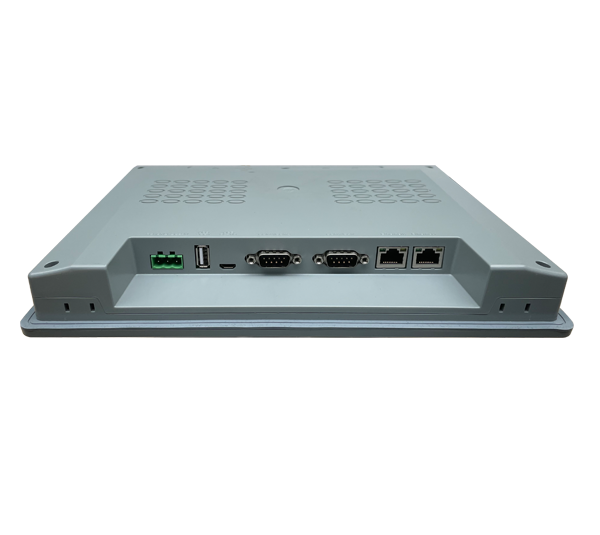

    GT100E2/GT100E2-4G/GT100E2-WIFI/GT100E2-CAN
    Kinco HMI GT Series

    10.1" HD display, 16.77M true color.

    Support Ethernet function.

    Powerful script function, support edge calculation.

    Built-in Iot function, support remote service.

    Product Information
    Performance Specification
    Display size

    10.1" TFT

    Resolution

    1024¡Á600 px

    Display color

    16.7M

    Backlight

    LED

    Luminance

    350cd/m?

    LCD life

    More than 30000 hours

    Touch panel

    4-wire precision resistance network (surface hardness 4H)

    CPU

    ARM RISC 32Bit 800MHz

    Memory

    256MB Flash Memory+ 256MB Memory

    RTC

    Built-in RTC+32KB

    External storage

    USB Host

    Printer port

    USB Host/Serial port

    Ethernet

    2*10/100M adaptable Ethernet interface

    Program download

    U Disk/Ethernet

    Communication

    COM0£ºRS232/RS485/RS422£»COM1:RS485/RS422;COM2£ºRS232

    Electrical Specification
    Input

    DC10.8V~DC28V

    Power

    5W@24VDC

    Allowable loss of power

    <3ms

    Insulation resistance

    Over than 50M¦¸@500V DC

    Hi-pot test

    500V AC 1 minute

    Structure specification
    Shell material

    Engineering plastics

    Shape size

    271*213*38(mm)

    Cutout size

    260*202(mm)

    Weight

    1.1Kg

    Environmental Specification
    Working temperature

    0~50¡æ

    Working humidity

    10~90%RH (non-condensing)

    Storage temperature

    -20~60¡æ

    Storage humidity

    10~90%RH (non-condensing)

    Sine vibration test

    10~500Hz, 30m/s?, X,Y,Z direction/hour

    Cooling mode

    Natural air cooling

    Product Certification
    Panel protection grade

    Conforming to IP65 certification

    CE certification

    Conforming to CE certification

    Software
    Configuration software

    Kinco DTools V3.5.2 and above version
