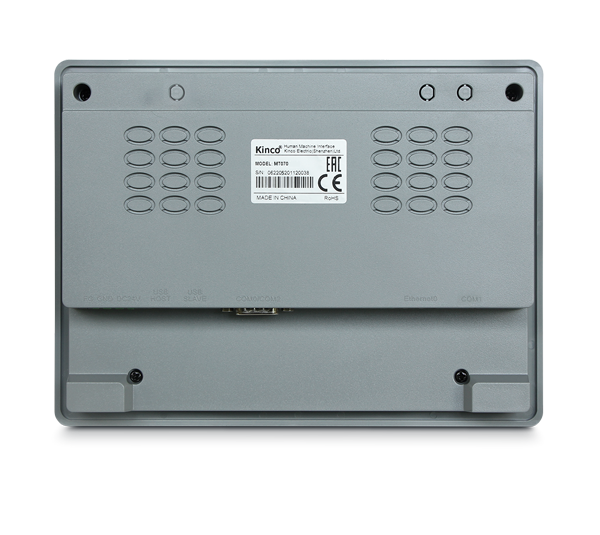

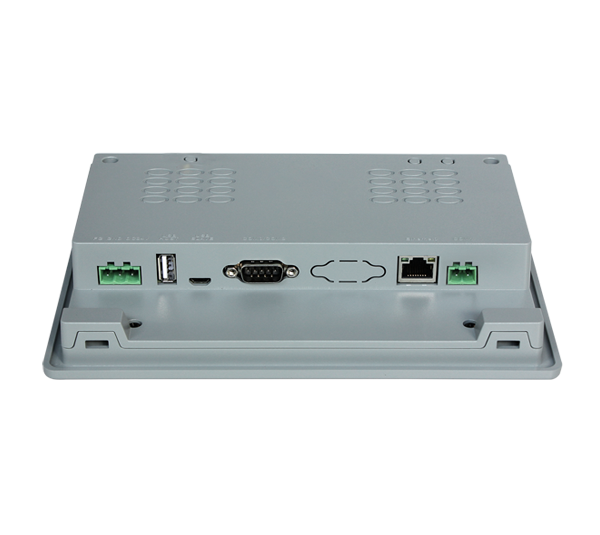

MT070/MT070E/MT070E-4G
Kinco HMI Mass Series

7" HD display, 256k color.

Support Ethernet function.

Three serial，COM0 and COM1 support RS485 at the same time

Product Information
Performance Specification
Display size

7" TFT

Resolution

800×480 px

Display color

256K color

Visual angle

70/70/50/70

Backlight

LED

Luminance

250cd/m?

LCD life

50000 hours

Touch panel

4-wire precision resistance network (surface hardness 4H)

CPU

ARM RISC 32Bit 792MHz

Memory

128MB Flash Memory+64MB Memory

RTC

Built-in RTC

External storage

1 USB Host

Printer port

USB Host/Serial port

Ethernet

None

Program download

USB Slave(Micro USB)/Serial port

Communication

COM0:RS232/RS485/RS422; COM1:RS485;COM2:RS232

Electrical Specification
Input range

DC10.8V~DC28V

Power

4.2W@ DC24V

Allowable loss of power

<3ms

Insulation resistance

Greater than 50MΩ@ 500V DC

Hi-pot test

500V AC 1 minute

Structure specification
Shell material

Engineering plastics

Shape size

204*150*37 (mm)

Cutout size

192*138(mm)

Weight

0.5Kg

Environmental Specification
Working temperature

0~50℃

Working humidity

10~90%RH (non-condensing)

Storage temperature

-20~60℃

Storage humidity

10~90%RH (non-condensing)

Sine vibration test

10~500Hz, 30m/s?, X,Y,Z direction/hour

Cooling mode

Natural air cooling

Product Certification
Panel protection grade

Conforming to IP65 certification (4208-93)

CE certification

CE: EN61000-6-4:2007+A1:2011，EN61000-6-2:2005

Software
Configuration software

Kinco DTools V3.5.2 and above version
