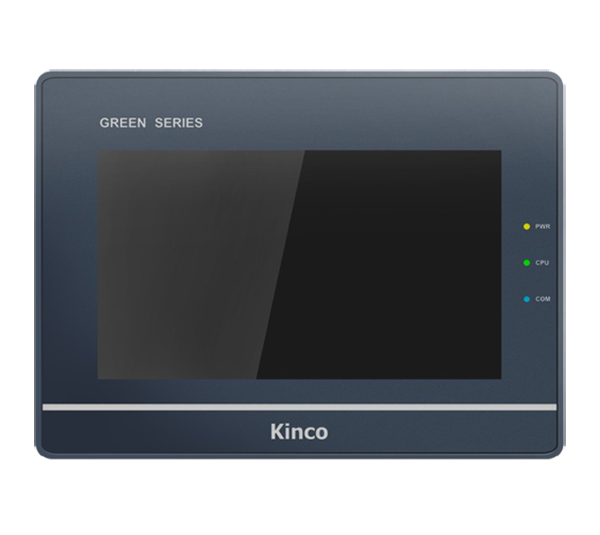

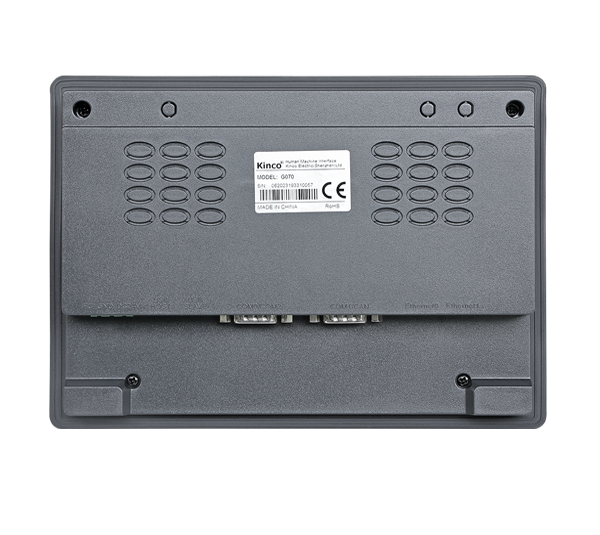

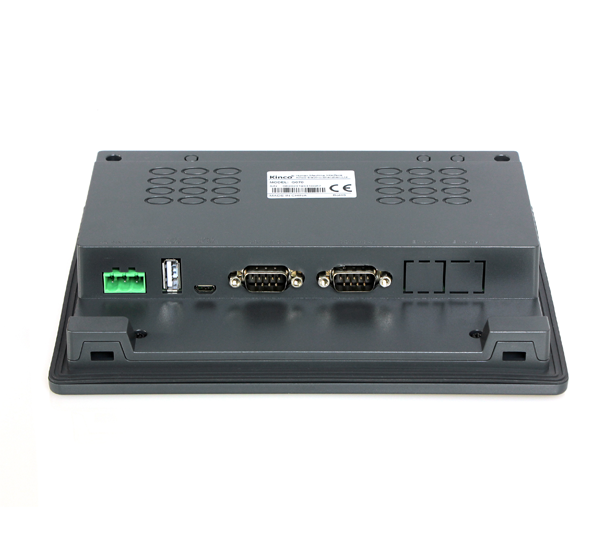

    G070/G070E/G070E(UL)/G070E-CAN
    Kinco HMI GREEN Series

    Built in isolated power supply enhances reliability

    Better display effect of high brightness liquid crystal

    Support can bus

    Three serial ports meet various needs

    SPECIFICATION
    Performance Specification
    Display size

    7" TFT

    Display area

    154.08(W)¡Á85.92(H)

    Resolution

    800¡Á480 px

    Display color

    16.77M

    Visual angle

    70/70/60/70(L/R/U/D)

    Contrast

    500:1

    Backlight

    LED

    Luminance

    400cd/m?

    LCD life

    More than 30000 hours

    Touch panel

    4-wire precision resistance network (surface hardness 4H)

    CPU

    ARM RISC 32Bit 800MHz

    Memory

    256MB Flash Memory+ 128MB Memory

    RTC

    Built-in RTC

    External storage

    1 USB Host

    Printer port

    USB Host/Serial port

    Ethernet

    LAN0:10/100Mbps

    Bus interface

    1*CANopen

    Program download

    USB Slave(Micro USB)/U Disk/Ethernet

    Communication

    COM0:RS232/RS485/RS422; COM1:RS485/RS422; COM2:RS232

    Electrical Specification
    Input range

    DC12V~DC28V, built-in isolation power supply

    Power

    3.8W@DC24V

    Allowable loss of power

    <3ms

    Insulation resistance

    Greater than 50M¦¸@500VDC

    Hi-pot test

    500VAC 1 minute

    Structure specification
    Shell material

    Engineering plastics

    Shape size

    204¡Á150¡Á37(mm)

    Cutout size

    192¡Á138(mm)

    Weight

    0.5Kg

    Environmental Specification
    Working temperature

    0~50¡æ

    Working humidity

    10~90%RH (non-condensing)

    Storage temperature

    -20~60¡æ

    Storage humidity

    10~90%RH (non-condensing)

    Sine vibration test

    10~500Hz, 30m/s?, X,Y,Z direction/hour

    Cooling mode

    Natural air cooling

    Product Certification
    Panel protection grade

    Conforming to IP65 certification (4208-93)

    CE certification

    CE: EN61000-6-4:2007+A1:2011£¬EN61000-6-2:2005

    Software
    Configuration software

    Kinco DTools V4.1 and above version
