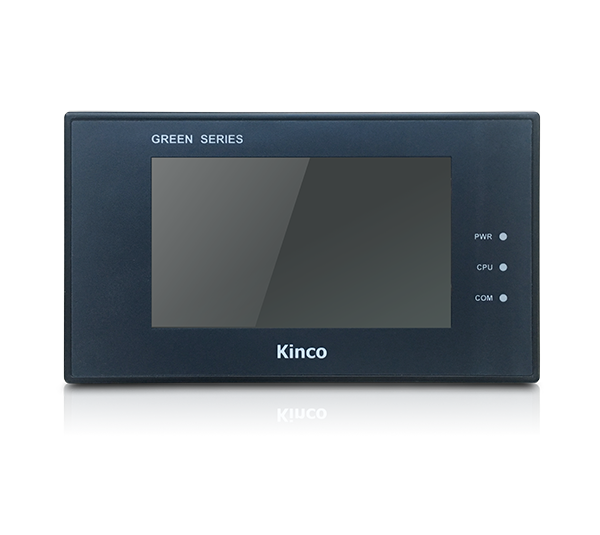

    GH043/GH043E
    Kinco HMI GREEN Series

    The preferred model for rail transit, high-speed subway.

    Motherboard with three - prevention treatment, effective response to complex use environment.

    Built-in isolated power supply, enhance reliability.

    Classic shape, hidden serial port outgoing cable.

    SPECIFICATION
    Performance Specification
    Display size

    4.3" TFT

    Display area

    95.04(W)¡Á53.86(H)

    Resolution

    480¡Á272 px

    Display color

    16.77M true color

    Visual angle

    70/70/50/70(L/R/U/D)

    Contrast

    500:1

    Backlight

    LED

    Luminance

    300cd/m?

    LCD life

    More than 30000 hours

    Touch panel

    4-wire precision resistance network (surface hardness 4H)

    CPU

    ARM RISC 32Bit 800MHz

    Memory

    256MB Flash Memory+128MB Memory

    RTC

    Built-in RTC

    External storage

    1USB Host + 1SD Card

    Printer port

    USB Host/Serial port

    Ethernet

    10/100M adaptable Ethernet interface

    Program download

    USB Slave (Type B)/U Disk/Ethernet

    Communication

    COM0: RS232/RS485/RS422; COM2: RS232

    Serial port isolated

    None

    Electrical Specification
    Input range

    DC12V~DC28V, inbuilt isolated power supply

    Power

    3.5W@DC24V

    Allowable loss of power

    <3ms

    Insulation resistance

    Over 50M¦¸@500V DC

    Hi-pot test

    500V AC 1 minute

    Structure specification
    Shell material

    Engineering plastics

    Shape size

    154¡Á89¡Á60(mm)

    Cutout size

    146¡Á81(mm)

    Weight

    0.4Kg

    Environmental Specification
    Working temperature

    -20~55¡æ

    Working humidity

    10~90%RH (non-condensing)

    Storage temperature

    -25~60¡æ

    Storage humidity

    10~90%RH (non-condensing)

    Sine vibration test

    10~500Hz, 30m/s?, X,Y,Z direction/hour

    Cooling mode

    Natural air cooling

    Product Certification
    Panel protection grade

    Conforming to IP65 certification (4208-93)

    CE certification

    CE: EN61000-6-4:2007+A1:2011£¬EN61000-6-2:2005

    Software
    Configuration software

    Kinco DTools V4.1 and above version


    Notes: GH043E is a replacement model for MT4220TE.

    The old version of the project can be opened directly by DTools software and downloaded to the new HMI.
